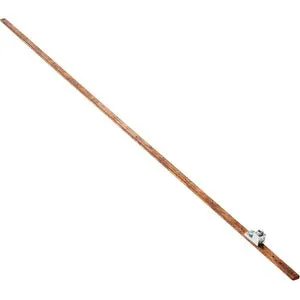

The Tripp Lite by Eaton SmartRack Copper Bus Grounding Bar is a crucial component for ensuring optimal grounding of your rack-mounted equipment. Built with precision and designed to cater to EIA-standard 24U and 25U racks, this heavy-gauge solid copper grounding bar not only enhances the safety and performance of your equipment but also streamlines the installation process. Ideal for data centers and server rooms, this grounding bar provides peace of mind when managing ground-sensitive equipment.
- High-Quality Construction: Crafted from durable heavy-gauge solid copper, this grounding bar guarantees optimal conductivity and longevity, making it a reliable choice for grounding your rack-mounted equipment.
- Convenient Installation: The Tripp Lite SmartRack grounding bar comes complete with all necessary mounting hardware, ensuring easy installation in any EIA-standard 24U or 25U rack enclosure or open frame rack.
- Effective Grounding Solution: Featuring drilled and tapped holes in every other U space, the grounding bar allows for the straightforward installation of ground wire jumpers, creating a reliable direct path to ground for each individual rack component.
- Versatile Applications: This product is perfect for large data centers, server rooms, and any environment housing ground-sensitive equipment, providing essential grounding to protect your valuable assets from electrical faults.
- 5-Year Limited Warranty: Buy with confidence knowing that this grounding bar is backed by a substantial 5-year limited warranty, affirming its durability and effectiveness in protecting your equipment.
Technical Details of Product
- Model: SRGROUND25
- Material: Heavy-gauge copper
- Size Compatibility: EIA-standard 24U and 25U racks
- Installation: Includes all necessary mounting hardware
- Warranty: 5-year limited warranty
How to Install
Installing the Tripp Lite SmartRack Copper Bus Grounding Bar is a straightforward process. Follow these steps for a smooth installation:
- Gather all included mounting hardware.
- Determine the optimal location for the grounding bar within your rack.
- For rack enclosures, use the screws to secure the grounding bar into place. For open frame racks, utilize the included toolless mounting buttons.
- Attach the ground wire jumper to one of the drilled and tapped holes on the grounding bar.
- Connect the jumper to your rack components using grounding straps.
Frequently Asked Questions
- What racks can the Tripp Lite SmartRack Copper Bus Grounding Bar be used with? The grounding bar is compatible with any EIA-standard 24U or 25U rack enclosure or open frame rack.
- Is the grounding bar easy to install? Yes, the grounding bar is designed for easy installation and comes with all the necessary mounting hardware.
- What materials is the grounding bar made from? The grounding bar is constructed from heavy-gauge solid copper, ensuring excellent conductivity.
- Does the grounding bar come with a warranty? Yes, it comes with a 5-year limited warranty for added peace of mind.
- Can I use this grounding bar in a smaller rack? The grounding bar is specifically designed for EIA-standard 24U and 25U racks and may not fit properly in smaller racks.
